DRT trailers are available from a standard range, or bespoke to your own needs,

 in a choice of 4 standard paint colours.

Please contact us with your requirements.

Grain Trailers

Root Crop Trailers

Flat-bed Trailers

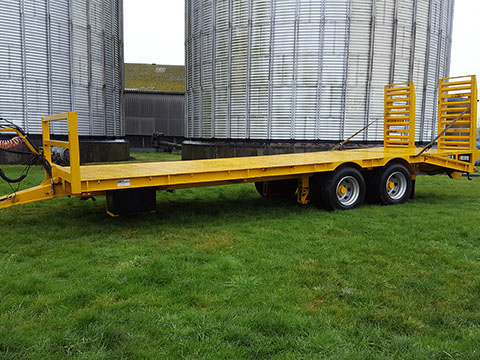

Low Loader, Blower's & Bowser's

Dump Trailers

High lift Trailers

Bespoke Builds

Grain Trailers

Root Crop Trailers

options

repairs

spares

Flat-Bed Trailers

High Lift Trailers

Low Loaders, Blower's Bowser's

Bespoke Builds

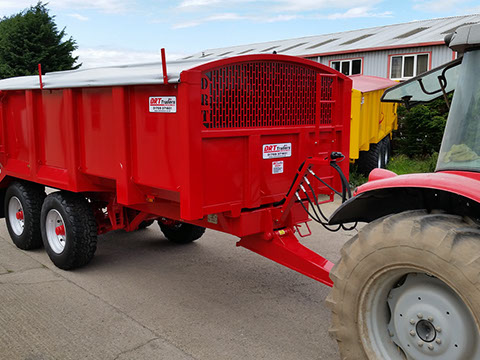

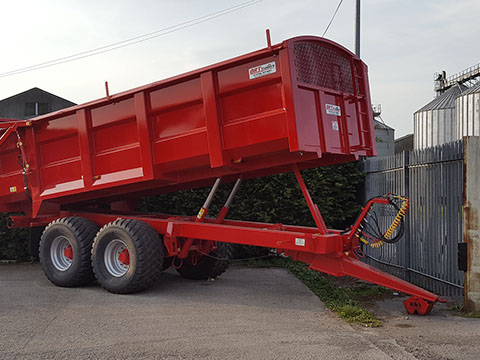

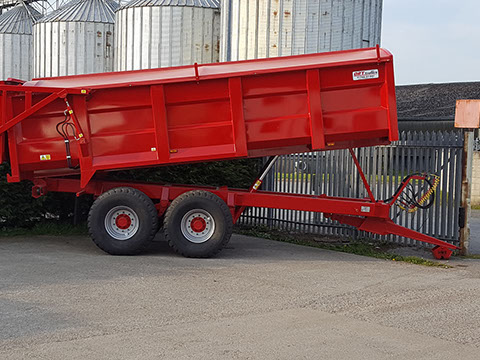

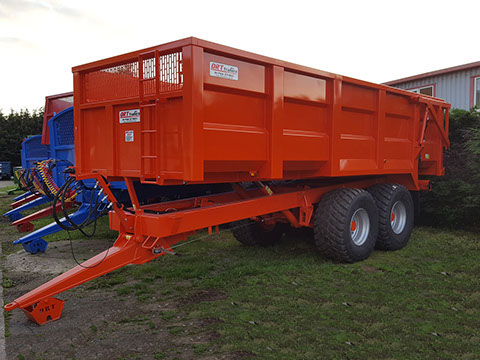

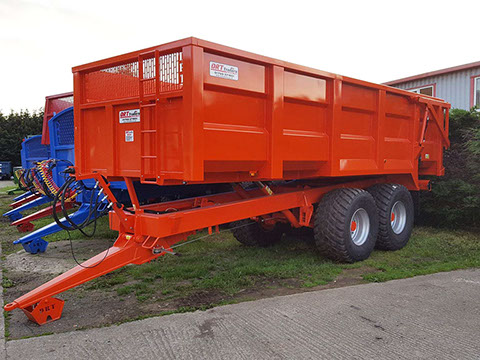

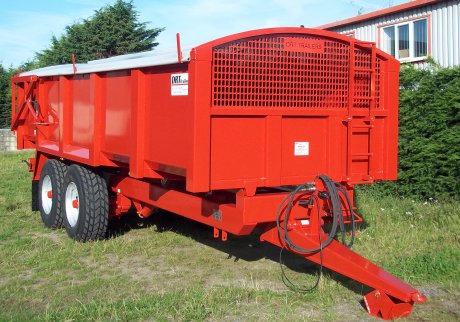

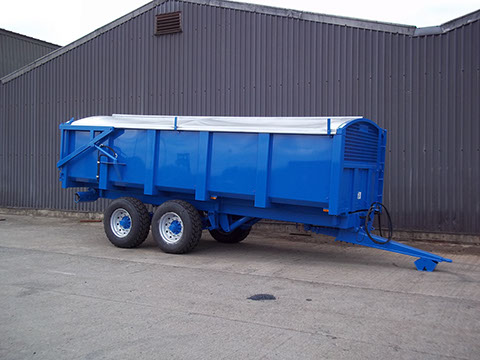

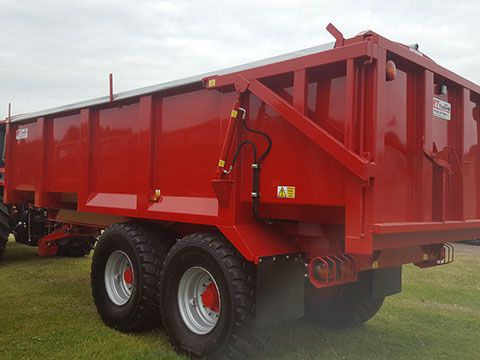

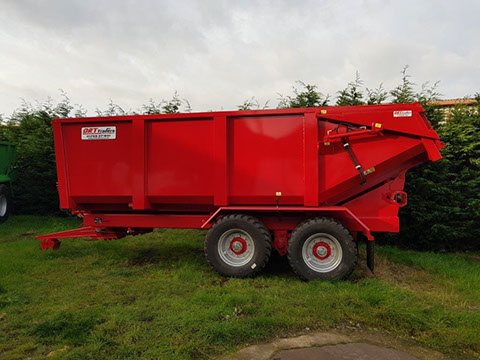

Standard range of Grain trailers available, all models include 5mm Floor, 4mm sides,

double acting hydraulic tail door, access ladder, mudguards, led lights and super single tyres as standard.

Sizes are as follows but bespoke sizes can be made to customer requirements.



10/11 T :  17’ x7’6” x 3’9” (5.26m x 2.28m x 1.14m)

12 T :  19’ x 7’6” x 4’ (5.8m x 2.28m x 1.22m) includes sprung Drawbar and commercial axles

14 T:  21’ x 7’6” x 4’2” (6.4m x 2.28m x 1.27m) includes sprung Drawbar and commercial axles

16 T:  22’ x 7’6” x 4’6” (6.71m x 2.28m x 1.37m) includes sprung Drawbar and commercial axles

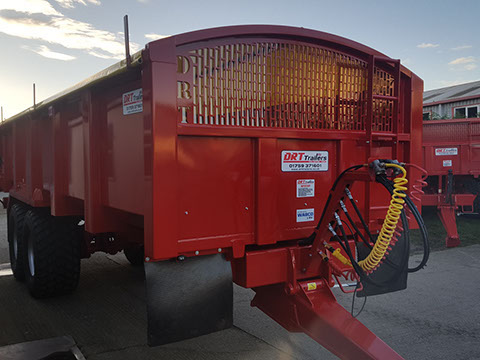

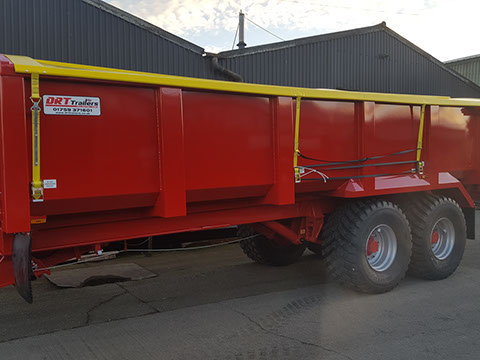

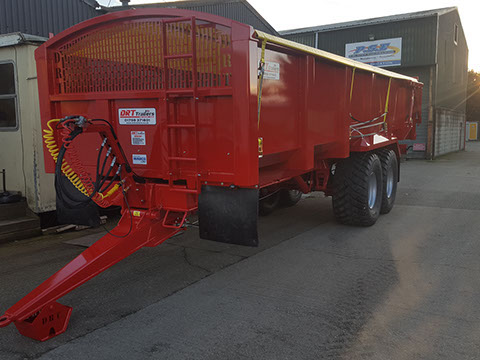

Standard range of Root trailers available, all models include 5mm Floor, 4mm sides, double acting hydraulic tail door, access ladder, mudguards, led lights and super single tyres as standard.

Sizes are as follows but bespoke sizes can be made to customer requirements.



12 T:   21’ x 7’6” x 3’9” (6.4m x 2.28m x 1.14m) includes sprung Drawbar and commercial axles

14 T:  22’ x 7’6” x 3’9” (6.71m x 2.28m x 1.14m) includes sprung Drawbar and commercial

16 T: 26’ x 7’6” x 3’9” (8m x 2.28m x 1.14m) includes sprung Drawbar and commercial

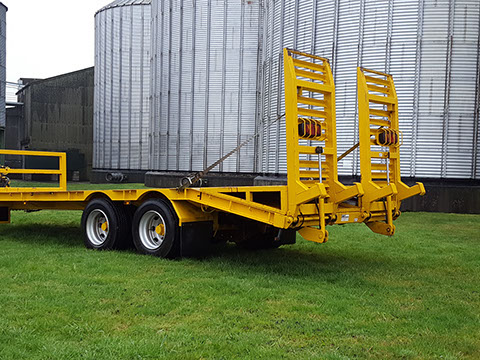

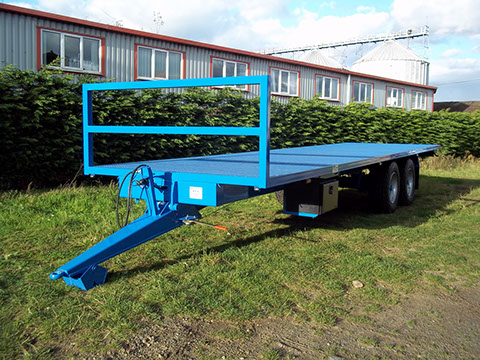

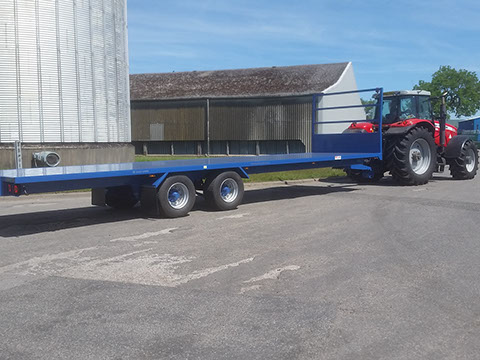

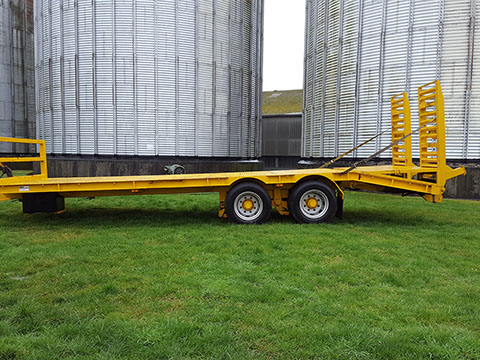

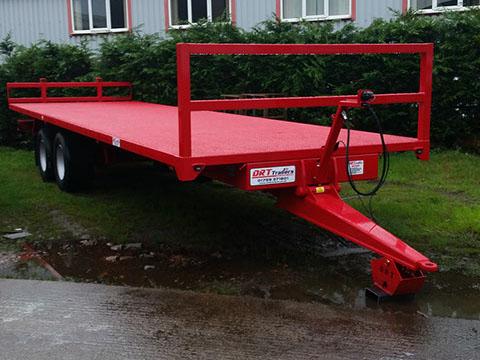

All our flat trailers are built using S355 hollow section chassis and 4.5mm over plain tread plate floors, as standard they are equipped with a front head board, sockets for a removable rear rack, led lights and super singles.

14T and above carrying weights come with full commercial axles (420x180 brake) and all can have the following options:

Led strobe lighting

Strap box

Oil load sensing brakes

Air brakes with load sensing

Air brakes with load sensing and ABS

Standard sizes are as follows, but can be built to your requirement’s:



25’ 10T:  25’ x 8’ (7.62m x 2.44m)

28’ 12T 28’ x 8’ (8.53 m x 2.44m)

32’ 12T  32’ x 8’ (9.75x 2.44m)

32’ 14T  32’ x 8’4” (9.75m x 2.54m)

36’ 14T  36’ x 8’4” (10.98m x 2.54m)

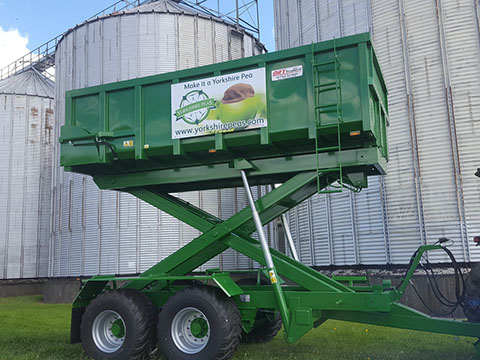

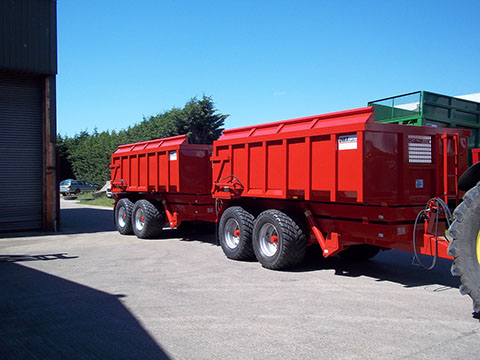

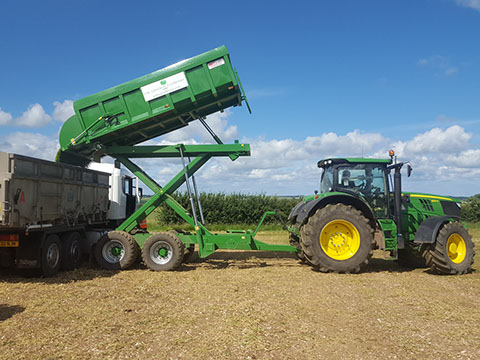

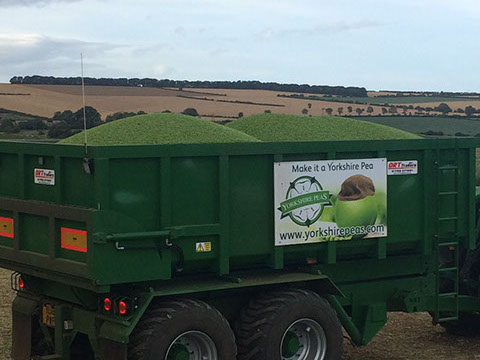

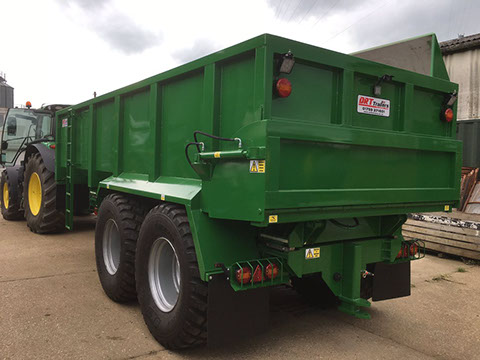

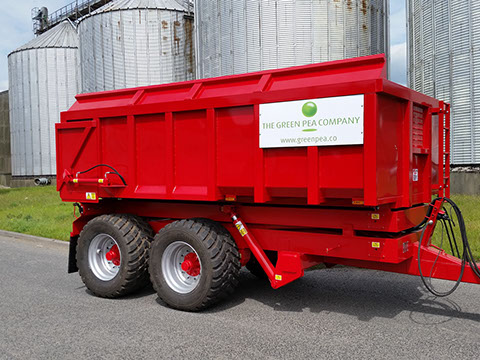

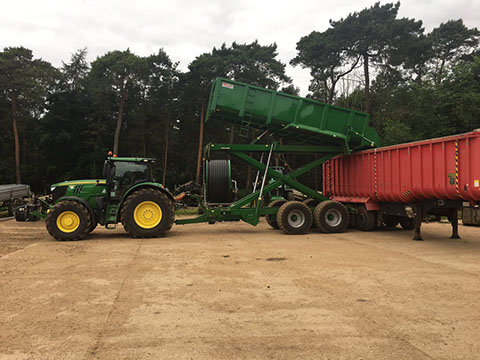

We have vast experience in the high tipping market and are the preferred supplier

to some of the big pea growing companies.

From 8t to 14T and with tipping highs reaching over 4m we are sure we can supply what you need.

Options include stainless steel bodies, hydraulic chute style doors, vision panes, wash bars,

internal lighting and full on board weighing systems.

Most high lifts are made specifically for the job in hand, we would be happy to look at your

requirement’s and design something to make your job run smoothly.





Built to order and to customer requirement’s

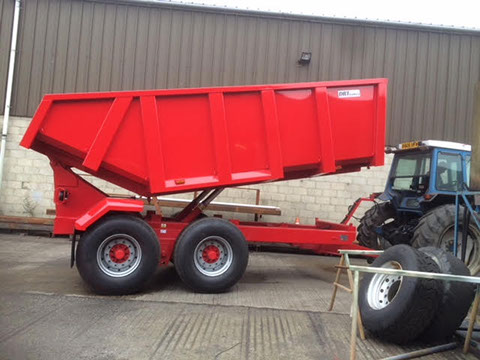

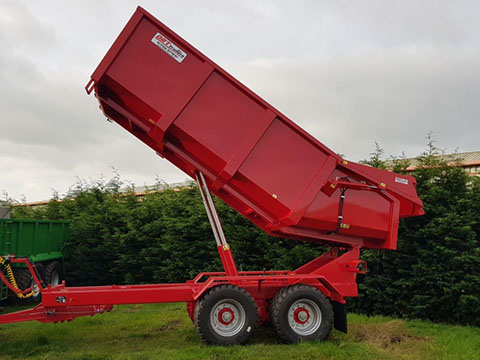

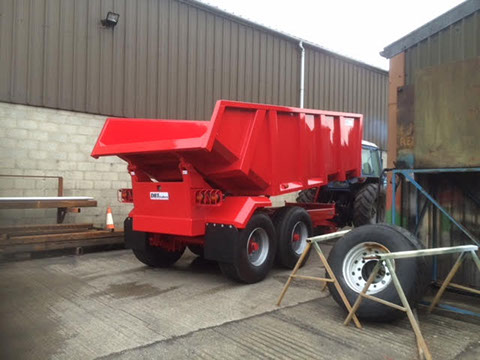

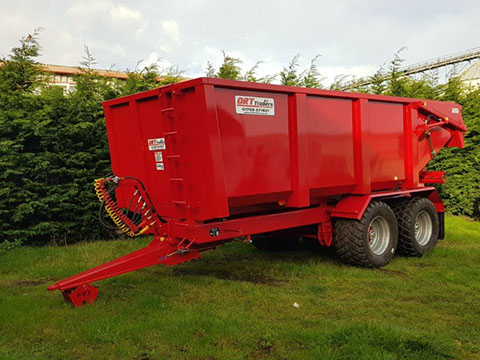

Dump Trailer's

From 12 to 18T or bespoke to your needs, high tipping points with hydraulic door options for multi-use.
